Transfer Pumps
Proven Food Grade

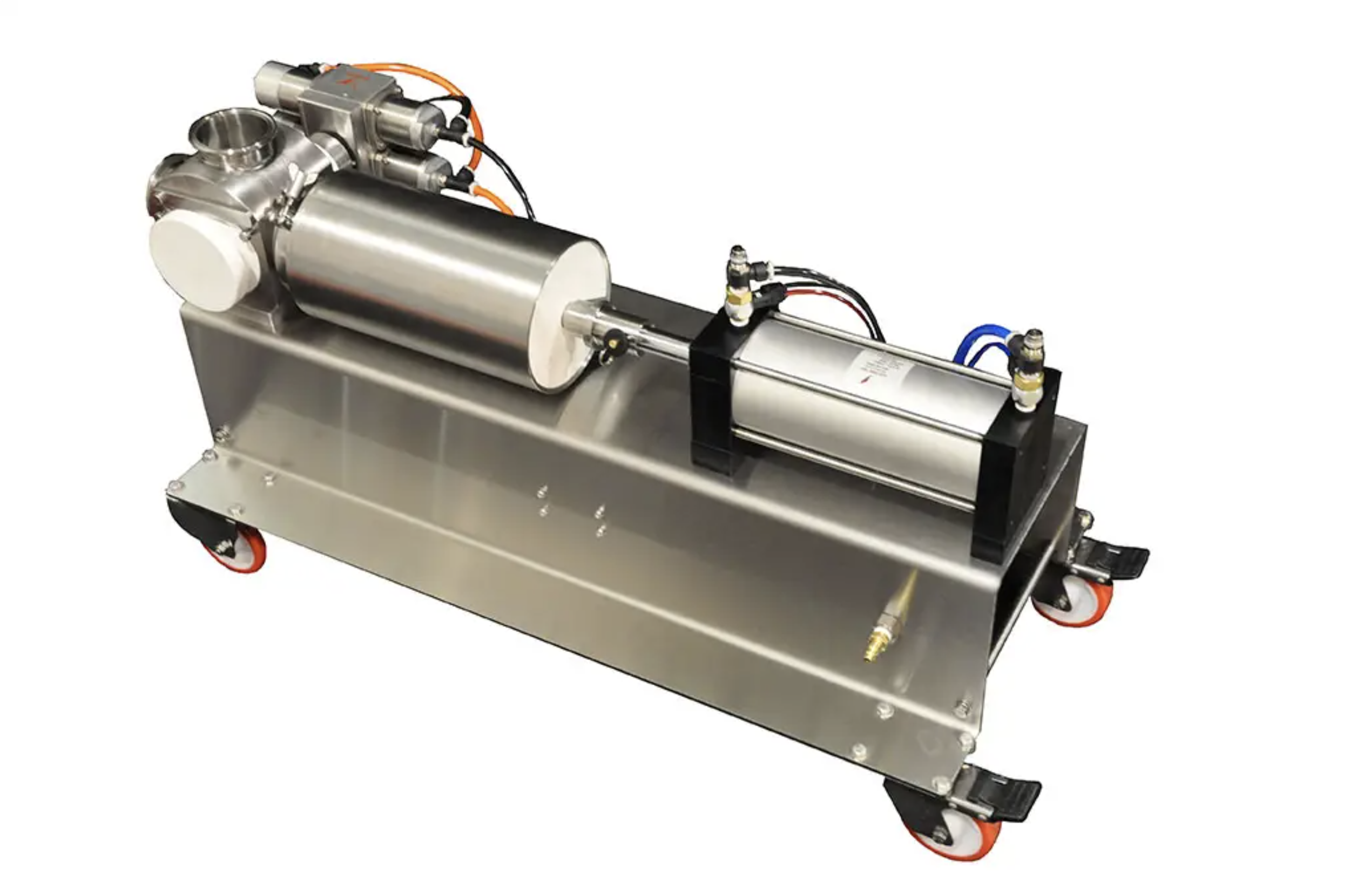

Does your company need food safe pumps constructed of FDA/USDA approved materials for transferring your products on processing or filling lines? Volumetric Technologies Food Grade Transfer Pumps are designed to gently transfer your flowable products to next steps.They are also used for pumping products to and from cooking or holding tanks for further processing. This is all done with gentle piston pump action that reduces product degradation. These are low shear pumps which will not damage your products.
Volumetric Technologies Food Grade Transfer Pumps are designed to handle thick or thin products, hot or cold products, and products with or without large particulates. They are also very reliable and easy to clean. The tool-free design means you can disassemble and reassemble in just minutes.
Generally, transfer pumps move fluid from one location to another using a difference in pressure. Power is needed to create this pressure, draw the fluid into the pump, and expel the fluid toward its new location.
Food-grade transfer pumps meet sanitary standards to make them safe to use for food production. Stainless steel is often the material of choice given its sanitation and cost-efficiency. These kinds of pumps are also used in the food and pharmaceutical industry because they fulfill similar requirements.
Options
Available in 2”, 3”, and 4” port sizes
Custom product tank
Agitated product tank
Heated product tank
Controlled Manually or Automatically via level control system
Custom hoses and piping to/from the pump
Features
Gentle on shear sensitive products
Product contact surfaces constructed from 316L stainless steel and USDA approved materials
Built to last in the toughest environments
Quick tool-free assembly and disassembly
Adjustable speed controls
Rotary actuator valve drive assembly
POWER
REQUIREMENTS
Air and Electric (varies)
SPEED
Up to 20 Cycles
per minute
PARTICULATE SIZE
Up to 1/4 diameter
WASHDOWN
Full washdown
Pump Fill Stations
Volumetric Technologies Pump Fill Stations are used to semi automatically fill a wide variety of products into bags which are then sealed. These Pump Fillers have many uses, but are mainly used in institutional kitchens and commissaries for soups, stews, and ready to eat products. All product and contact surfaced are 316L stainless steel and USDA / FDA approved materials.
At the heart of the Pump Fill Station is our industry leading Piston Filler / Depositor. The Pump Fill Station is customizable to meet your needs by equipping any of our Piston Fillers / Depositors and Dispensing Nozzles. We also offer two seal types with these machines, a tipper tie clip model, or a heat seal model which can also include a vacuum sealer.
The filling function is started by depressing the foot pedal, which provides a single cycle to fill a pouch. The operator can also keep the foot pedal depressed for continuous cycling to aid in transferring product as well as purging the product out of the Piston Filler at the end of a production run. The Pump Fill Station includes pneumatic flow controls to regulate fill and recharge speed as required. Designed for daily cleaning by wash down or in-sink cleaning methods, the Pump Fill Station requires no tools to disassemble or reassemble.
Options
Extremely accurate up to +/- .25 of 1%
Pouch holding Table
Manual foot pedal operated
Portable, compact design
Quick tool-free assembly and disassembly
Product contact surfaces constructed from 316L stainless steel and FDA/USDA approved materials
Adjustable speed controls
Customizable for any application
Features
Adjustable height nozzle mount
Nozzle heat safety guard
1500 – 3000 series piston filler
Tipper tie clip or heat sealer
Vacuum sealer
Applications
Volumetric Technologies Pump Fill Stations are used to semi-automatically fill a wide variety of products into bags which are then sealed. Products range from Salsa, soups and stews, cheese sauces, refried beans and pasta sauces just to name a few.
