Dispensing Nozzles

Liquid Filling Nozzles

With over 100 standard and custom Volumetric dispensing nozzles, we have the best solution for your application.

All of our dispensing nozzles are designed with tool-free assembly and disassembly using sanitary clamp connections, making sanitation fast and easy! Like all equipment produced by Volumetric Technologies, our dispensing nozzles are designed and built to the highest quality.

Features

Product contact surfaces constructed from 316L stainless steel and FDA/USDA approved materials
Sanitary clamp connections
Drip-free bottom shutoff
Customizable for any application

View Brochure

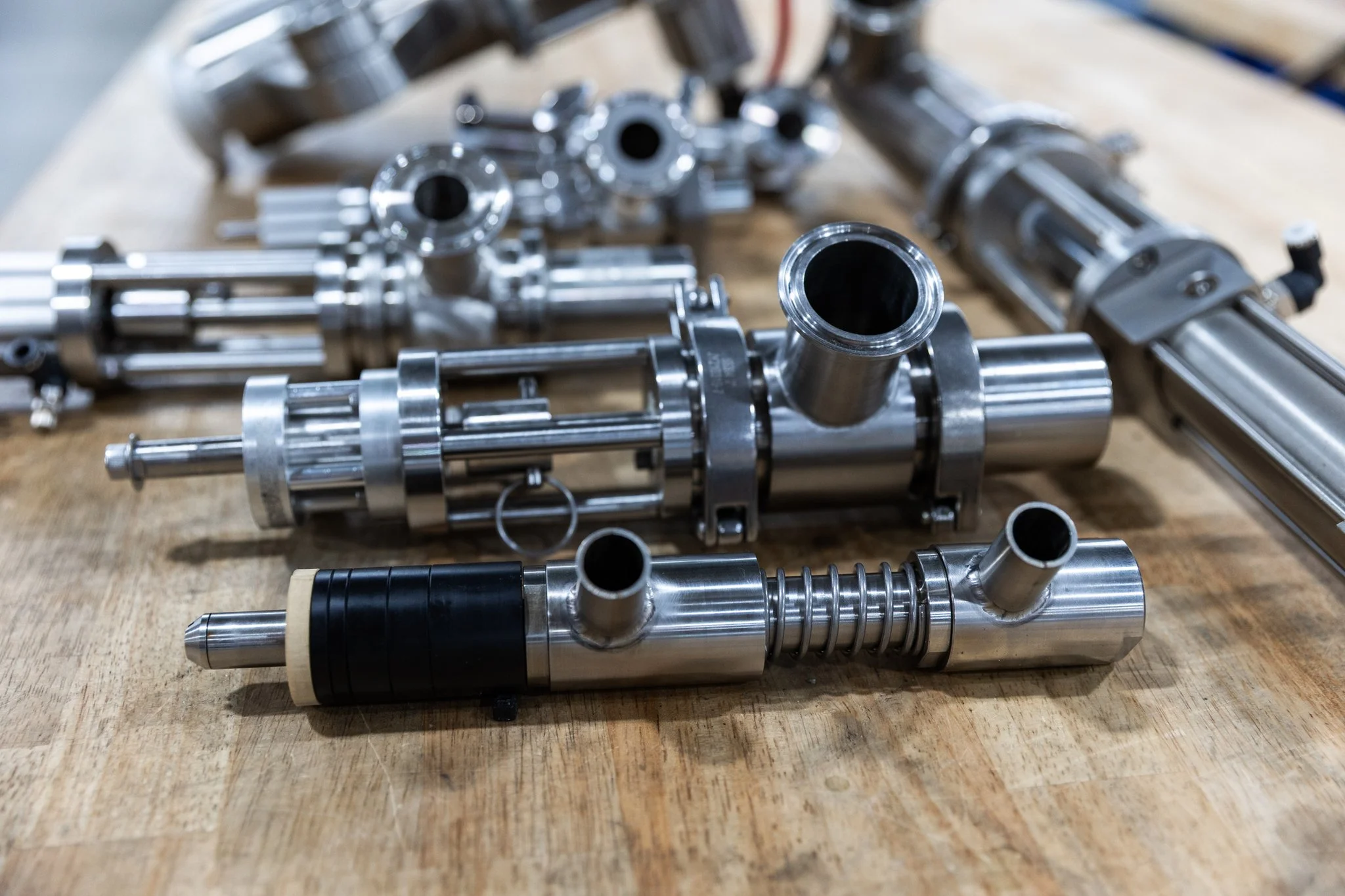

Types of Nozzles to Order

To Order or Ask Questions call 507-263-0034 x400 or Submit Form Below

Beveled Seat

Beveled Seat Nozzles are bottom shut-off, no-drip dispensing nozzles designed for thin liquids or thick creams. They are available in opening sizes ranging from .25” to 1.9” with a variety of lengths for top filling or bottom-up filling containers.

Inverted Cone

Inverted Cone Nozzles are the ideal choice for liquids, creams, homogeneous sauces, and sticky products. They provide extremely clean drip-free dispensing and a softer, diffused fill that helps eliminate splashing. Available in sizes from .375” to 1.875”.

Guillotine Cutoff

Guillotine and Wire Cutoff’s are most commonly used in the meat, cheese, and baking industries with a vacuum stuffer to extrude extremely thick products such as cubed, ground, or full muscle meats, chicken, sausage, cheese, and dough. The guillotines are available in a wide variety of extruder horn diameters as well as custom shapes.

Rotary Cutoff

Rotary Cutoff Nozzles are a versatile style of nozzle for thick products, with or without particulates. The rotary nozzle provides a clean cutoff of the product flow and is recommended for products that buildup such as fudge, soup bases, or products with high sugar or salt content. Available in 1” – 3” sizes.

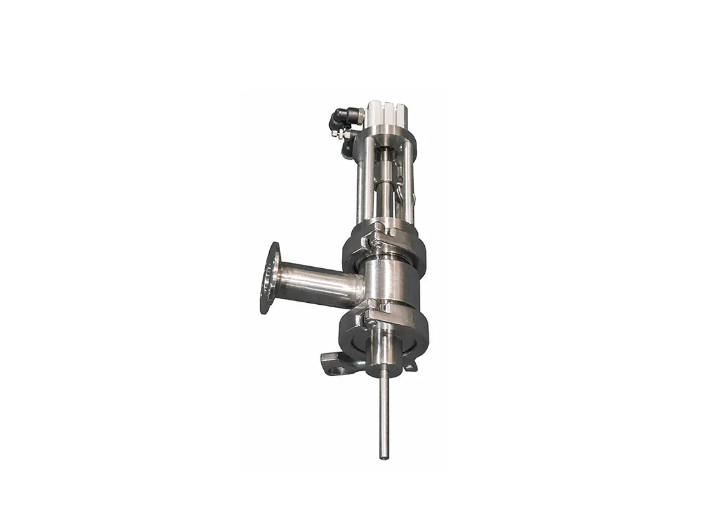

Capillary

Capillary Nozzles provide drip-free dispensing of thin liquids. Available in single or multiple tube versions, these nozzles provide a clean laminar flow of product during dispensing and a clean cutoff.

Overflow

Overflow Nozzles are designed for filling thinner liquid products dispensed from an overflow filler. Volumetric Technologies manufactures a wide variety of overflow nozzles for our overflow fillers, as well as overflow nozzle replacements for other brands. Overflow nozzles dive into the container and are compressed open, allowing the product to flow through the nozzle. When the container is full, it overflows into the return line, the nozzle is then retracted and the product flow is shut off.

Plug Spout

Plug Spout Nozzles from Volumetric Technologies are the industry standard in dispensing nozzles. Our 2 and 3 position models are available in sizes ranging from .375” up to our large 3” models.

Select from a variety of options including Ertalyte or Waukesha alloy spool valves. Other variations of this nozzle include shear edge models, angled inlet to reduce product shear, and air-shot-thru piston models to aid in clean fills.

Diaphragm

Diaphragm Nozzles provide drip-free dispensing of thin liquids. Utilizing only a diaphragm, body, and cap, these nozzles have a simple construction that provides extremely fast actuation. Dispensing flow is soft and laminar through this nozzle, ensuring no splashing.

Handheld

Our Handheld Nozzles have the ability to deposit many products such as soups, marinades, batters and a wide variety of food-based products. These are extremely useful for producing ready to eat meals, in bakery applications, or lab operations where you have to make many deposits accurately and cleanly. Volumetric Technologies also manufactures rosette tip attachments for these nozzles for cake and bakery goods decorating.

Horizontal Cutoff

Horizontal Cutoff Nozzles are the leading choice for many bakery applications that use thick, slurry-type products with or without particulates. Simple and effective with a clean cutoff, these nozzles are available in 1” thru 3”.

There are many icing tips to choose from so you can turn your ideas for decorating into a reality, without the use of a decorating bag. Our Handheld nozzles are easy to disassemble and clean and come with a pistol grip handle as well as a finger trigger for cycle start. Design and balance make these handheld vertical cut off nozzles comfortable for the operator to use.

Custom

All our current Standard Nozzles have come about from being created initially as Custom Nozzles for our clients. They loved them so much that they have now become Standard.

Please contact us for any type of custom nozzle you may need for your filling machine.

Why Choose Liquid Filling Nozzles by Volumetric Technologies?

Having worked with many clients over the years, we’ve long since learned how important it is for filling machines to accurately and precisely dispense the right amount of product in a cup, bottle, bag, or container. We manufacturer an entire slate of volumetric filling machines, but in case you’ve already invested in equipment, Volumetric Technologies offers dispensing components like liquid filling machine nozzles.

Wasted product, messy filling stations, and inaccurate quantities dispensed in bottles and cans — these do more than inconvenience your staff. They can cause your sales to plummet because poor product handling can reduce its quality and create inconsistencies that disappoint customers.

Let Volumetric Technologies find lasting solutions for these problems. Our high-performance liquid filling nozzles are compatible with all types of filling systems. They are designed to cut-off product flow cleanly and consistently.
