Reliable, Innovative & Precise
Precision Piston Filling Solutions for Your Toughest Products

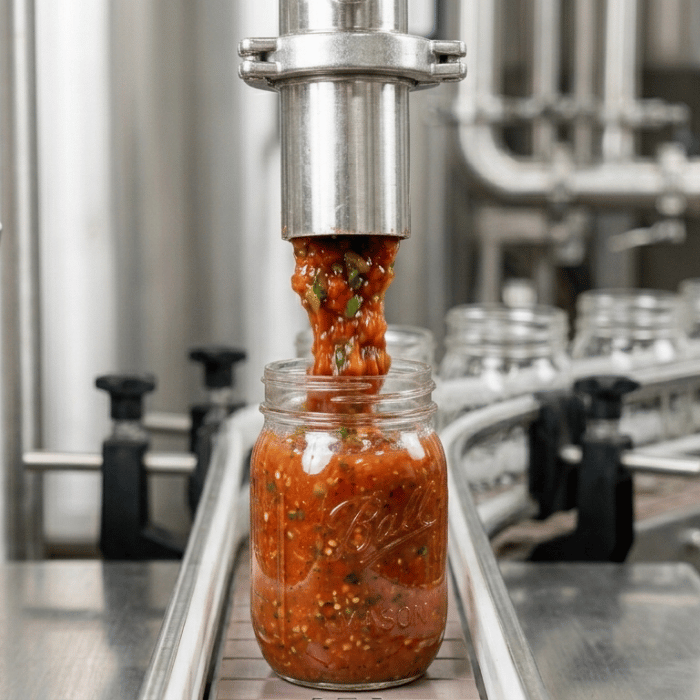

Sauces, Batters, Creams, Salsa, Viscous Liquids, and More
Engineered for accuracy. Built for reliability and speed.
What We Bring to Your Line
Fill volumes from 0.05 oz to 156+ oz with single or multi-head configurations up to 24 heads
Handles particulates up to 4″ in diameter without crushing or product degradation
Extremely accurate fills up to ±0.25 of 1% on homogeneous products, cycle after cycle
Pneumatic, electric, or servo-driven options from semi-auto to full PLC automation
Built with 316L/304 stainless steel and USDA/FDA approved contact materials
Tool-free changeover design for fast assembly, disassembly, and daily cleaning
Over 50 application-specific dispensing nozzles selected and matched to your product
Built for every viscosity and texture profile.
Find your product below. Tell us what you're filling and we'll spec the machine.
Thin Liquids
Low-viscosity, free-flowing products requiring drip-free deposition and clean nozzle shutoff.
Viscous & Pastes
Medium-to-high viscosity products that need controlled flow without product degradation.
Particulated
Chunks and whole-piece inclusions. Engineered pathway handles particulates up to 4″ diameter.
Shear-Sensitive
Emulsions, delicate proteins, and structured foods. Low-shear piston motion preserves product integrity.
Horizontal, Incline, and Custom Applications.
Our piston filler platform is configured against these parameters. Each machine is customized to your product and application.
| Deposit Volume | 0.05 oz up to 156.64 oz |
| Nozzles | 50+ types |
| Number of Heads | 1 to 24 |
| Machine Power* | Pneumatic / Electric / Servo |
| Type of Control | Pushbutton / HMI enclosure / Pneumatic |
| Sealing Materials | NBR, PTFE, metal detectable seals, etc. |
| Frame | Low Mount / Standard / Adjustable / Incline / No Frame |
| Hopper | Temperature control (banded on smallest machine), Agitation, Water traced, Filling Level Control, Temp Sensors |
* Requires clean compressed air and/or 120v, 220v, 480v electric.
Let’s Talk About Your Application
Tell us what you're filling and we'll recommend the right machine configuration for your line.
